60L Biochemical Analyzer Use Hospital Laboratory/Lab Ultra Pure Deionized Water System ZYTEST

ZYTEST--DI Water Machine
ZYTEST Deionized Water System for Hospital Test is usually used for rountine chemical laboratory analysis instruments especially
biochemical analyzer. The equipement with simple and generous appearance can easily produce water grade II (0.1-1 us/cm ultra-pure
water) and water grade III (2-10 us/cm pure water for glass ware washing) which meets standard ASTM, CAP, NCCLS, GB and
T6682-2008.

Model	Configurati on grade	l	ll
	Benchtop (L/H)	ZYTEST-l-10/20L	ZYTEST-ll-10/20L
	Floor style (L/H)	ZYTEST-l-20/40/60/80/100/120/150L	ZYTEST-ll-20/40/60/80/100/120/150L
Inlet water source		city tap water(TDS<200ppm),water pressure2.0-4.0kg/cm2 , water 10-30℃
Capacity		10/20/40/60/80/100/120/150L
DI product water quality (uS/cm)		Conductivity ＜ 0.1～1 uS/cm (on-line monitoring), converted resistivity ≥ 1～10 MΩ.cm Micro particulate matter (≥0.2um) < 1/ml, bacterial removal rate ≥99%
UP quality （MΩ.cm）		Resistivity 18.25MΩ.cm (online monitoring) Heavy metal ions＜0.1ppb Total Organic Carbon (TOC)＜20ppb Microparticles (≥0.2um)
Configuration		Single display table + DI column	Dual display + ultra-purification system
Product size(mm)		510380570mm (Benchtop)	5304201120mm(Floor style)
Product weight(kg)		30-35kg(Benchtop)	40-65kg(Floor style)
Power(W)		30W-50W(Benchtop)	50W-100W(Floor style)
Application		Hitachi, Olympus, Beckman, Toshiba, Roche, Abbott, Bayer, Mindray, Dire, Deling, Liba, Kehua, Senlong, Neusoft, Redu, Innovax and other imported and domestic brands of biochemical instrument water ; 1. Routine biochemical analysis and testing in the laboratory; 2. Routine quantitative analysis such as physical and chemical testing; 3. Water for immunohistochemical analysis of pathology department	Hitachi, Olympus, Beckman, Toshiba, Roche, Abbott, Bayer, Mindray, Dire, Deling, Liba, Kehua, Senlong, Neusoft, Redu, Innovax and other imported and domestic brands of biochemical instrument water ; 1. Atomic absorption (AA); 2. Atomic Emission (AES); 3. High performance liquid chromatography (HPLC); 4. High-performance liquid chromatography (HPLC) and other instruments with high analytical precision to analyze water;
Water storage tank		A. 10L/20L (Benchtop) comes standard with a 3.2G pressure pure water tank; B. 20L/40L/60L (Floor style) comes standard with a 40L pure water tank; C. 80L/100L/120L/150L (Floor style) comes standard with a 100L pure water tank; Note: The size of the water tank can be selected according to the user's situation.
Special configuration		Power: 100～150W	Weight: 90～150Kg
		Host size 1: D700W520H1470 mm

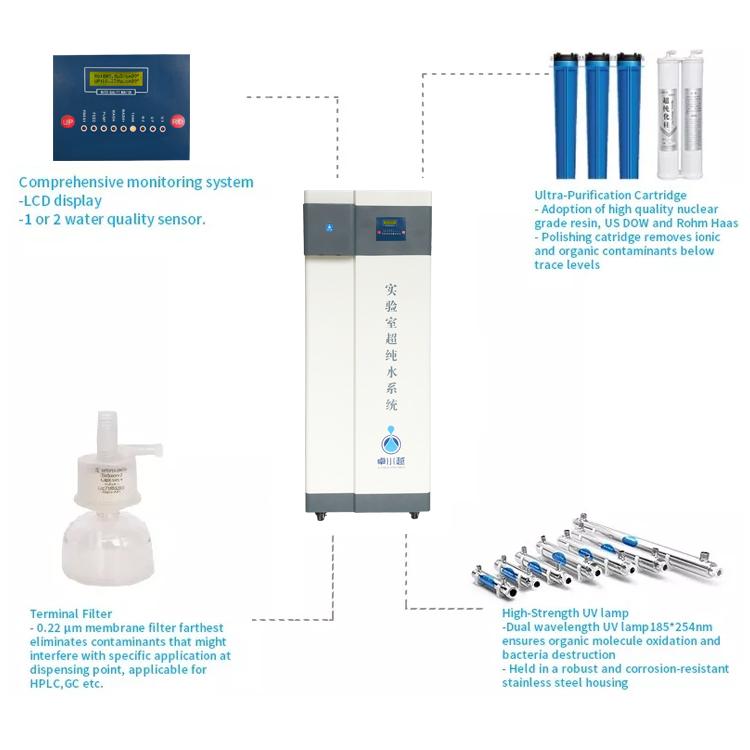

The Features of Distilled Water Equipment
· The pre-treatment system can filtrate particles, ions, manganese, residual chlorine,Mg2+, Ca2+, microorganism and odor;
· Automatic flushing system can extend the working life of consumables;
· The dealinization rate of RO membrane can arrive at 99%;
· Excessive discharge of substandard water ensures ultrapure water's quality;
· Automatic alarm when the UP water is not up to standard;
· Function: self test (power on), automatic alarm (water shortage), automatic stop (water full), protection (low pressure);
· Resistivity&conductivity meter monitor online;
· Equipe pressure water tank and PE water tank to meet pressure or self-priming type biochemical analyzer.

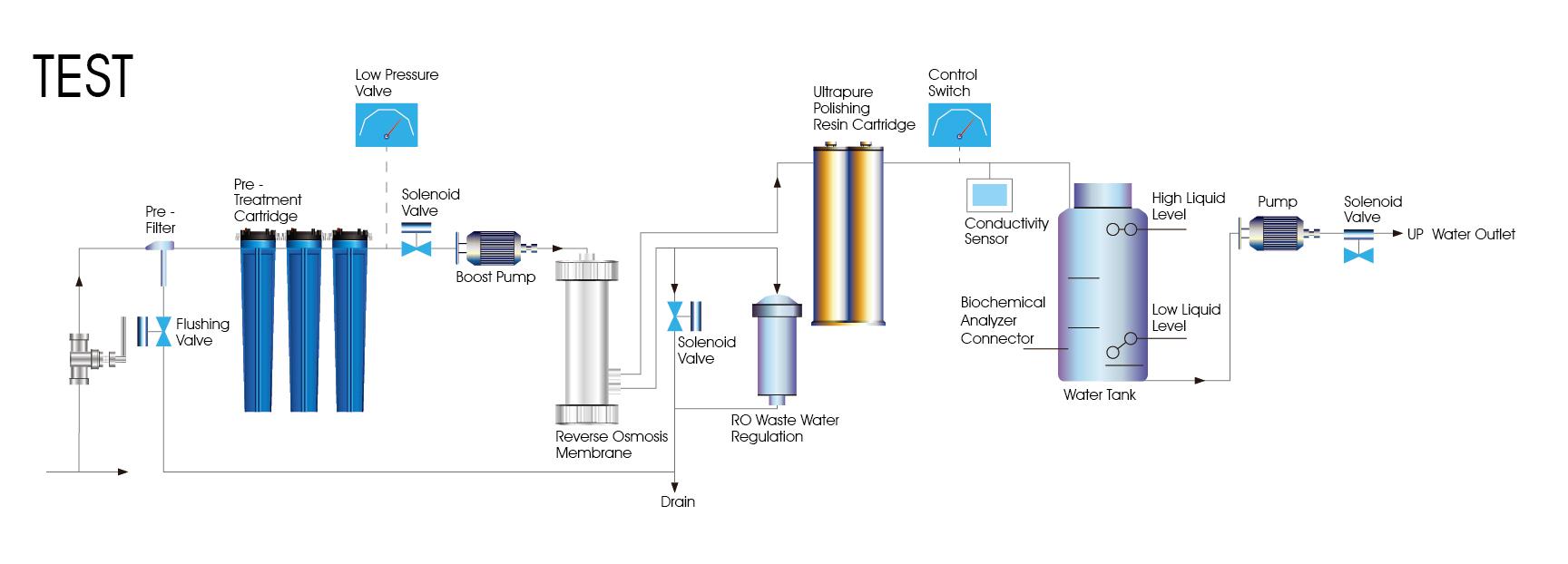

The technology process is divided into source water pretreatment system,reverse osmosis system and ultra-pure system.
1. Source water pretreatment system: PP fiber filter + AC filter + Softener
2. Reverse osmosis system: It has high removal rate more than 99% for high valent ions, colloids, bacteria and organic matter
(including endotoxin) with molecular weight greater than 300Dalton.
3. Ultra pure system: Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the
water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-pure
water for nuclear grade resin, the water resistance of up to 18.25 MΩ.cm.
