ZYRO series water treatment plant uses water filtration and reverse osmosis techonology to remove more than 99% sediment, rust, suspended matter, pollutant matter, residual chlorine, organics, inorganics, microorganism, bacteria and microparticles. The reverse osmosis technology has more than 200 years history. It's one of the best water purification technology today, so the RO water plant is usually used to kinds of industry, such as electrical, ecnomical, chemical, medical, pharmaceutical industry and commercial bottle water, clothing, food, agriculture, etc.
Technical Parameters:
| Water production | 1000 lph ; 0.25m3-100m3according to customers' requirement |
| RO membrane DN | 0.00001-0.0001um |
| Ion removal rate | ≥99%; |
| Endotoxin, bacterial removal rate | ≥ 99%; |
| Recovery | ≥75%; |
| Effluent conductivity | ≤ 15us / cm (source water quality TDS <200ppm) |
| Working pressur | 0.2-0.4 Mpa, |
| Water temperature | 5-40 ℃ |
Model List :
| No. | Model | Water yield (L/H) | Voltage/Power (V/Kw) | Body Size (L*W*H mm) | Water Tank (L/Material) |
| 1 | ZYRO-250 | 250 | 380/2.5 | 1500*600*1600 | 250/stainless steel/PE |
| 2 | ZYRO-500 | 500 | 380/3.5 | 1500*600*1600 | 500/stainless steel/PE |
| 3 | ZYRO-750 | 750 | 380/4.5 | 1500*800*1800 | 750/stainless steel/PE |
| 4 | ZYRO-1000 | 1000 | 380/6.0 | 1500*800*1800 | 1000/stainless steel/PE |
| 5 | ZYRO-1500 | 1500 | 380/7.0 | 1500*800*1800 | 1500/stainless steel/PE |
| 6 | ZYRO-2000 | 2000 | 380/8.0 | 1500*800*1800 | 2000/stainless steel/PE |
| 7 | ZYRO-3000 | 3000 | 380/9.5 | 1800*800*2000 | 3000/stainless steel/PE |
| 8 | ZYRO-5000 | 5000 | 380/11.5 | 1800*800*2000 | 5000/stainless steel/PE |
Note: Customization is available.
1. High-precision filter, the aperture of nano-level, the best water quality
2. Manual / electric control system automatically switch;
3. With a self-test, water-free point automatically open the system of water, water full stop, no pressure protection and other safety devices;
4. With open RO membrane automatic washing and water tank full automatic double wash function, can extend the life of RO membrane;
5. With on-line monitoring of water quality (conductivity display), flow and pressure on-line display;
6. Equipment integration, installation is simple, simple operation, no special duty;
7. Equipment failure with automatic alarm function;
8.High water production, high desalination rate, long service life;
9. Core components (pumps, RO membrane, electronic control systems, etc.) imported / domestic joint venture brand;
10. Equipment rack with stainless steel, low-pressure pipe for the UPVC material, high-pressure pipe using SUS304 stainless steel.

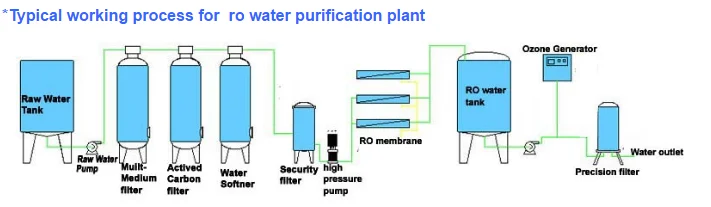

Technological process flow of 1000 lph industrial water treatment plant :
Working process of 1000 lph industrial water treatment plant :
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
