The Multi-media water filtration system is a processing in which a turbidity water is passed through a certain thickness of granular or non-granular material under a certain pressure by using one or several kinds of filter media, thereby effectively removing suspended impurities and clarifying water. The filter material includes quartz sand filter, active carbon filter, softener resin, anthracite, manganese sand, etc.. It's mainly used for water treatment to remove turbidity, pigment, particles, free chlorine, odor, Ca2+ and Mg2+.
Capacity | 5000L/H | Controller's brand | RUNXIN |
hardness of raw water | ≤8mmol/L | Water consumption | <2% capacity |
Water temperature | 10-45℃ | hardness of purified water | ≤0.03mmol/L |
Water pipe | PVC | Wooden case 1 | 139*101*229cm,258kg |
Working pressure | 0.2-0.4Mpa | Wooden case 2 | 125*65*158cm, 473kg |
Power | 110/220/380V | Softener resin | 001*7 resin |
Frequency | 50/60Hz | Salt | NaCl |
Security filter | 5um PP cotton | Salt box | 100L PE tank |
Model | Capacity (L/H) | Tank Specification (Φ*H*unit mm) | Softener resin (kg) | Brine box size (Φ*H mm) | Caliber |
| ZYRH-817T | 200-500 | Built-in | 10 | 440*220*640; built-in | 3'' |
| ZYRH-835L | 200-500 | Built-in | 16 | 440*220*1100; built-in | 3'' |
| ZYRH-844L | 200-500 | 200*1200*1 | 20 | 340*340*810; 60L | 3''/DN15 |
| ZYRH-1054L | 500-1000 | 250*1400*1 | 38 | 400*400*960; 100L | DN20 |
| ZYRH-1252L | 1000-2000 | 300*1350*1 | 54 | 400*400*960; 100L | DN20 |
| ZYRH-1465L | 2000-3000 | 350*1650*1 | 90 | 400*400*960; 100L | DN25 |
| ZYRH-1665L | 3000-4000 | 400*1650*1 | 112 | 400*400*960; 100L | DN25 |
| ZYRH-2069L | 4000-6000 | 500*1750*1 | 200 | 520*1070; 200L | DN25 |
| ZYRH-2472L | 6000-8000 | 600*1850*1 | 280 | 610*1100; 300L | DN50 |
| ZYRH-3672L | 100000 | 900*1800*1 | 560 | 900*1230; 750L | DN50 |

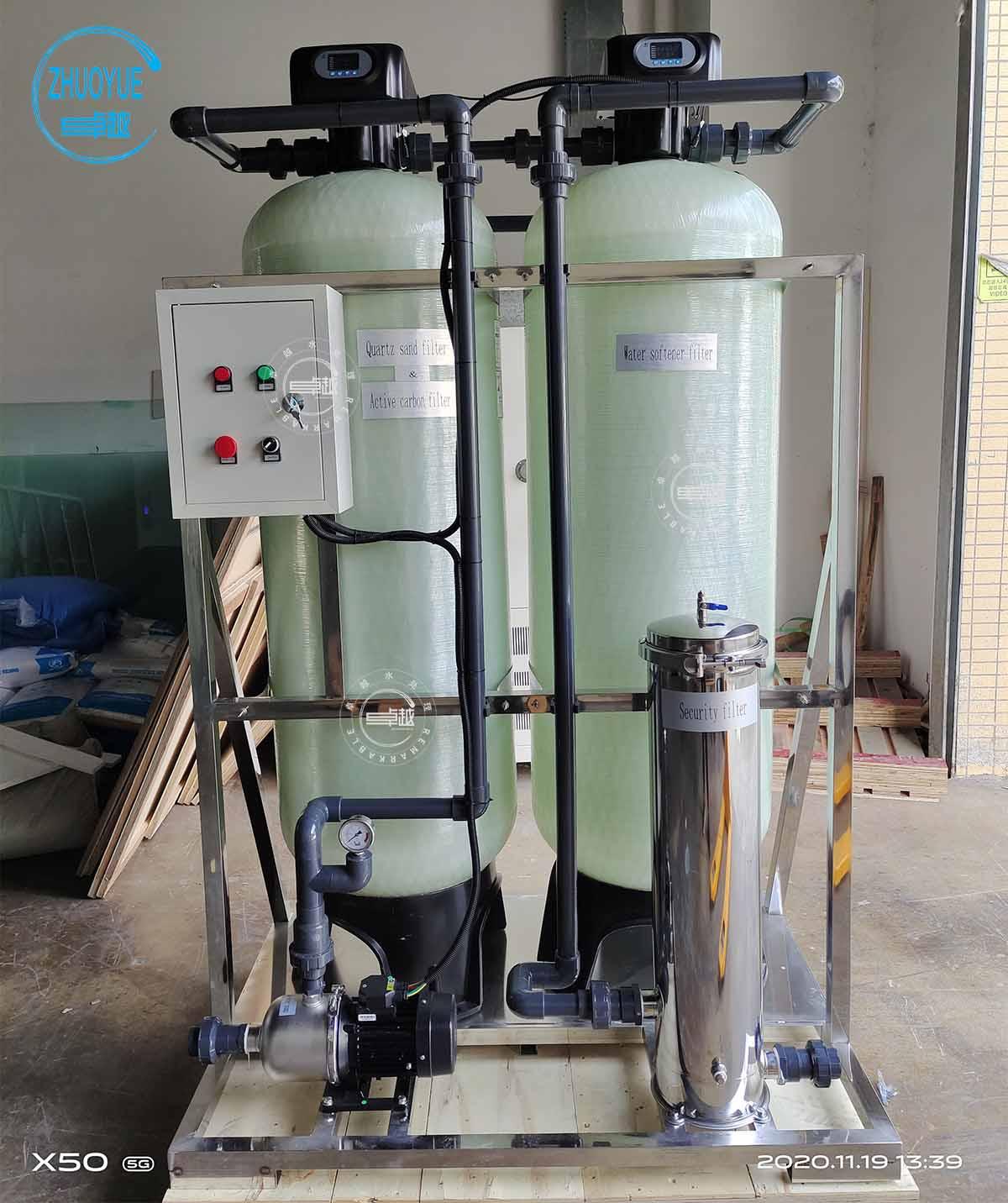

*. Raw water pump: provide pressure;

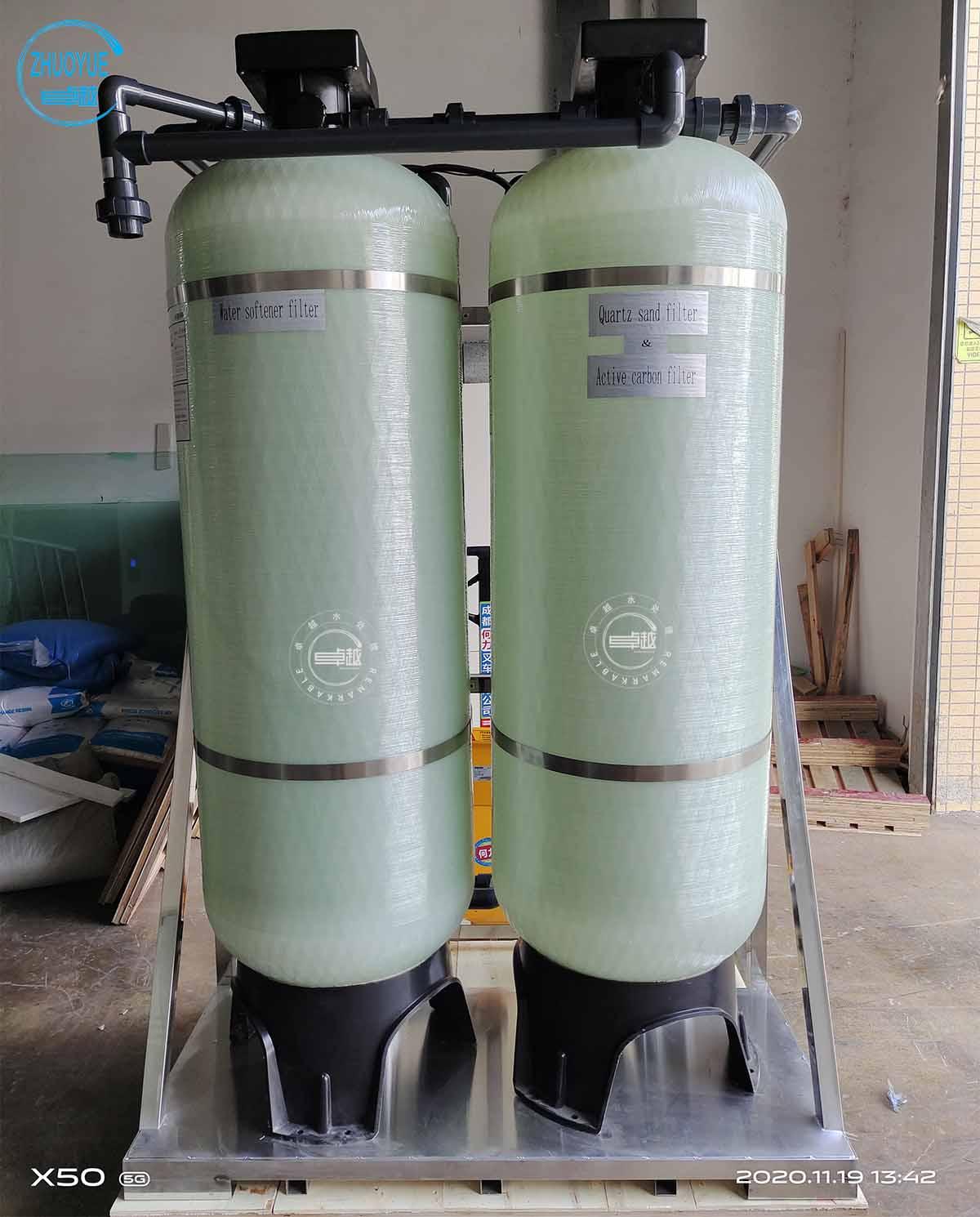

*. Quartz sand filter: filtrate sediment, silt, particles, colloid, algo, suspended matter, etc.
*. Active carbon filter: adsorb free chlorine, pigment, odor and part of microorganism.
*. Softener resin: remove Ca2+ and Mg2+ to Na+ to change hard water to soft water and prevent scaling.
*. Security filter: 5um PP cotton filtrates free resin particles and other microparticles.
1. Automated Filtration Process: This device automates the process flushing process through a program control device.
2. Labor Saving: The entire washing process does not require special personnel, easy to install.
3. Provincial water: The water production rate is above 98%.
4. Power saving: Use AC power, power 30W.
5. Easy adjustment: The flush cycle can be adjusted as needed.
6. Tank anti-corrosion: The tank adopts glass steel and stainless steel lining plastic technology to avoid pollution.
