ZYR Aqua Pure Water Machine uses the technology of reverse osmosis to produce RO pure water for laboratory . With the conductivity sensor that on-line monitoring of water quality to ensure the pure water fits for laboratory requirement.

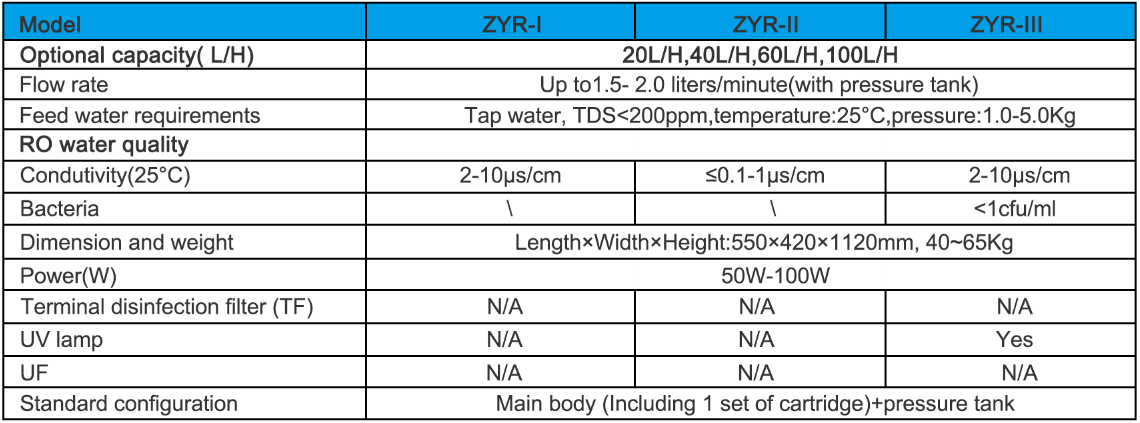

Model List:
| Model | ZYR-I | ZYR-II |
| Bench type (capacity) | 10L/20L | 10L/20L |
| Floor stand type (capacity) | 20/40/60/80/100/150L | 20/40/60/80/100/150L |
| Raw water's requirements | Tap water or underground water (TDS < 200 ppm); Water pressure: 0.1-0.5 MPa Water temperature: 25° | |
| Flow rate | 1.5 - 2.0 L/min | |
RO water quality (us/cm) | conductivity: 2-10 us/cm ( monitoring on-line) | --------------- |
UP water quality (MΩ.cm) | --------------- | Conductivity: 0.1-1 us/cm; Heavy ion < 0.1ppb Micro particles (0.2um) < 1 unit/ml Microorganism < 0.1cfu/ml |
| Configuration | conductivity meter | conductivity&resistivity meter, ultrapure cartridge |
| Main engine's size (mm) | 510*380*570 mm (bench) | 550*420*1150 mm (Floor) |
| Main engine's weight (kg) | 25 -30kg (bench) | 40-65kg (Floor) |
| Power (w) | 30-50w (bench) | 50-100w (Floor) |
| Water application | 1. Glass ware washing, student experiment; 2. The preparation of chemical reagents; 3. Buffer, cleaning machine, high pressure sterilization pot; 4. offer pure water for ultra-pure water machine. | 1. Glass ware washing, student experiment; 2. The preparation of chemical reagents; 3. Buffer, cleaning machine, high pressure sterilization pot; 4. Conventional physical and chemical detection; 5. Biochemical analysis; 6. Physical and chemical testing and other conventional qualitative and quantitative analysis. |
| Optional water tank | 1. 3.2G pressure water tank (Bench); 2. 6G/11G pressure water tank (Floor); 3. 20G pressure water tank (for 100L ZYR; | |
Note: The best water temperature of RO membrane is 25℃. Every time the water temperature drops by 1℃, the water production of RO membrane will drop by 3%. The RO membrane will stop producing water when the water temperature is lower than 5℃.
*. The production water quality maybe more than 10us/cm when the feed water's TDS is larger than 200ppm. So we suggest customer to use double reverse osmosis system or add a prefiltration system--water softener at high TDS area.
Working Flow:
The technology process is divided into source water pretreatment system,reverse osmosis system and ultra-pure system.
1. Source water pretreatment system: PP cotton + AC filter + PP cotton;
2. RO membrane: It has high removal rate more than 99% for high valent ions, colloids, bacteria and organic matter (including endotoxin) with molecular weight greater than 300Dalton.
3. Ultra pure system(PURE-II): Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-pure water for nuclear grade resin, the water resistance of up to 18.25 MΩ.cm.
4. Disinfection system: UV lamp and onzone generator.
Features:
*. Pre-treatment system filtrates iron, manganese, free chlorine, calcium, mangnesium, organics, odor, etc.
*. Pre-treatment with automatic flushing function.
*. Perfect management functions like RO and ultra-pure water making, water taking,system circulation and disinfection,etc.
*. Automatic RO membrane anti-fouling flushing and manual forced flushing procedures to extend the life span of RO membrane.
*. Comprehensive system maintenance and safety alarm:
*. Adopt more advanced, user-friendly membrane push button to take water.
*. Semi-transparent medical grade PP material do not produce secondary pollution.
*. Humanization design of manual/automatic water taking mode,Timing(1-99min),customization water taking (0.1-18.25MΩ.cm)
Package:
Why choose us :
1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
