ZYUFL-18 MF/UF membrane filtration lab machine

Introduction of MF/UF membrane filtration:

ZYUFL-18 is used for process experiments such as concentration, separation, purification, clarification, sterilization, and solvent removal of liquids.

It can be equipped with micro-filtration and ultra-filtration various types of roll membrane components. Widely used in biological, pharmaceutical, food, chemical, environmental protection and other fields, for the concentration, separation, purification, clarification, sterilization, solvent removal and other process experiments; the selected experimental parameters of the equipment can be directly amplified to Pilot and industrial production; ZHUOYUE water treatment with strong technical strength and professional technical services, fully guarantee the customer's experimental success rate, become the first choice for laboratory membrane filtration machine.

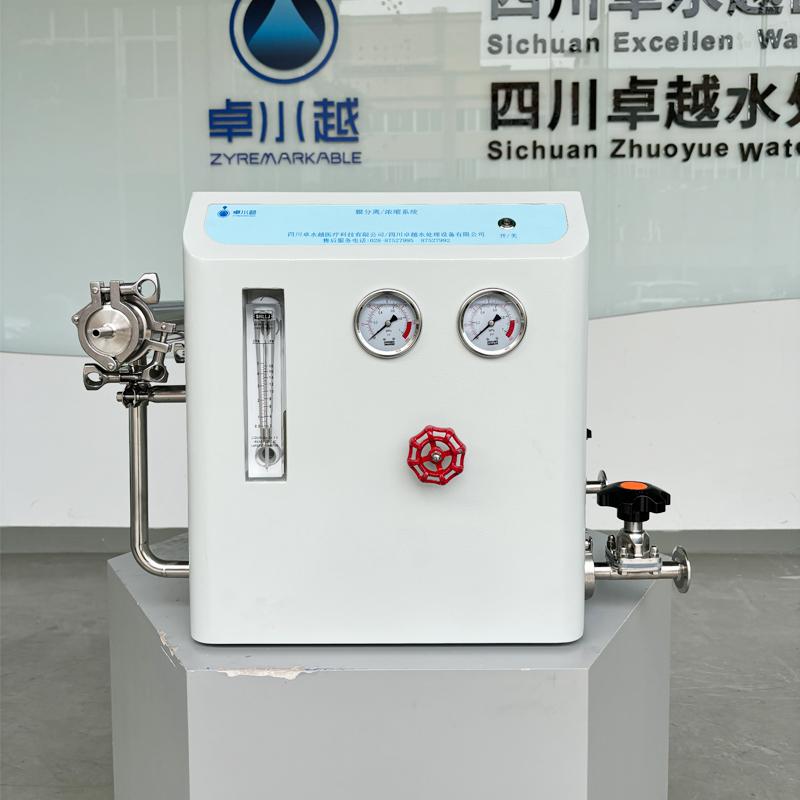

Microfiltration/Ultrafiltration MF/UF Membrane Filtration Lab Machine ZYUFL-18



Paramters of of MF/UF membrane filtration



Maximum working pressure: 1MPa

Working temperature: 5~45°C

Filtration rate: 1~10 L/H

Maximum pump power:230W

pH range: 2~12

Equipment specifications: 550 (length) × 410 (width) × 455 (height) mm

With automatic overpressure protection


Model list

Different membranes for this lab MF/UF membrane filtration

Polyethersulfone (PES); polyvinylidene fluoride (PVDF); sulfonated polyethersulfone; sulfonated polysulfone; polyamide;

Membrane component specifications: 1812   Φ46 × L305

Filtration area: 0.4m2

Membrane typeTypes
M F100nm(0.1um)\200nm(0.2um)
U FOptional molecular weight cut off:3000D,5000D,8000D,10000D,20000D,30000D,50000D,100000D,300000D,500000D,800000D
Nano FOptional molecular weight cut off:150D-500D   MgSO4>98%

Basic confirguration of MF/UF membrane filtration

Electromagnetic supply pump 1SET;

Stainless steel membrane module 1PC;

Seismic pressure gauge 1SET;

material balance cylinder 1SET;

Pressure regulating valve 1PC;

Membrane (optional) 1PC;

Equipment bracket, chain joint, pipe and connectors;

Overpressure automatic protection system 1SET .
