Products Description

Purified water system of ZYCHS series preparation room

Product description of purified water system in preparation room

The hospital preparation room is the place where the hospital prepares preparations. Its main task is to prepare Pharmacopoeia preparations (including "ministerial standards" and "local standards") and prefabricated drugs prescribed by the hospital, such as mixtures, solutions, powders, ointments, tinctures, suspensions, suppositories, tablets, films, capsules, etc. In addition, the sterilization preparation room is responsible for large-scale infusion, injections and eye drops of various specifications. The hospital preparation room needs purified water that meets the GMP specifications of the Pharmacopoeia. The whole system is made of SUS304 or SUS316L all stainless steel. Before the water point, it must be equipped with UV or ozone sterilization or pasteurization system. New technologies such as pretreatment, reverse osmosis and EDI are adopted to design a complete set of purified water treatment process for the preparation room, which fully meets the requirements of GMP, so as to meet the purified water requirements of pharmaceutical and medical industries.

Technical parameters of purified water system in preparation room:

Product parameters

1. Water capacity: 0.25m3 /h ~ 10 m3/h (refer to the water consumption model of users); 2. Ion removal rate ≥ 99%; Removal rate of
endotoxin and bacteria: ≥ 99%; 3. Primary recovery rate: 60%-65%, secondary recovery rate ≥ 75% (adjustable); 4. Product water
quality: meet the purified water standard of Chinese Pharmacopoeia 2020; Conductivity of purified water ≤ 2 ~ 5.1us/cm;
Microorganism < 100cfu/ml Comply with the purified water for in vitro diagnostic reagents YY/T1244-2014 standard (add EDI Series);
Conductivity of purified water ≤ 1.0us/ cm@25 ℃ (conversion resistivity ≥ 1.0 m Ω cm@25 ℃）； 5. Water inlet requirements: municipal
water supply, water supply pressure: 0.2 ~ 0.4MPa; Inlet water temperature: 5 ~ 40 ℃; 6. Ambient temperature: 5-40 ℃, humidity ＜
85%RH, no dust and strong electromagnetic interference;

Model list

The process flow

The technology process is divided into source water pretreatment system,reverse osmosis system and ultra-pure system.
1. Source water pretreatment system: PP fiber filter + AC filter + Softener
2. Reverse osmosis system: It has high removal rate more than 99% for high valent ions, colloids, bacteria and organic matter
(including endotoxin) with molecular weight greater than 300Dalton.
3. Ultra pure system: Ion exchange resin using H + exchange cation out the water in the filter ,using OH- exchange anions out the
water , the replaced H + and OH- combined to produce H2O, ultra-purified column filling the United States Dow UPW-450 Ultra-pure
water for nuclear grade resin, the water resistance of up to 18.25 MΩ.cm.

Product exhibition

Recommended by seller

Factory price high quality multi-effect WFI water for injection distillation machine

CN¥666,670.00 / set

1 set

Manufacturer Supplier Automatic Pharmaceutical RO Water Treatment Plant for Drug Industry GMPRO

CN¥95,744.48 / set

1 set

Ro Water Treatment Plant Produce water for Pharmaceutical Use in Drug Industry GMPRO

CN¥71,953.70 / set

1 set

5 us/cm Low Conductivity Pure Water Pharmaceutical Machine

CN¥86,667.10 / set

1 set

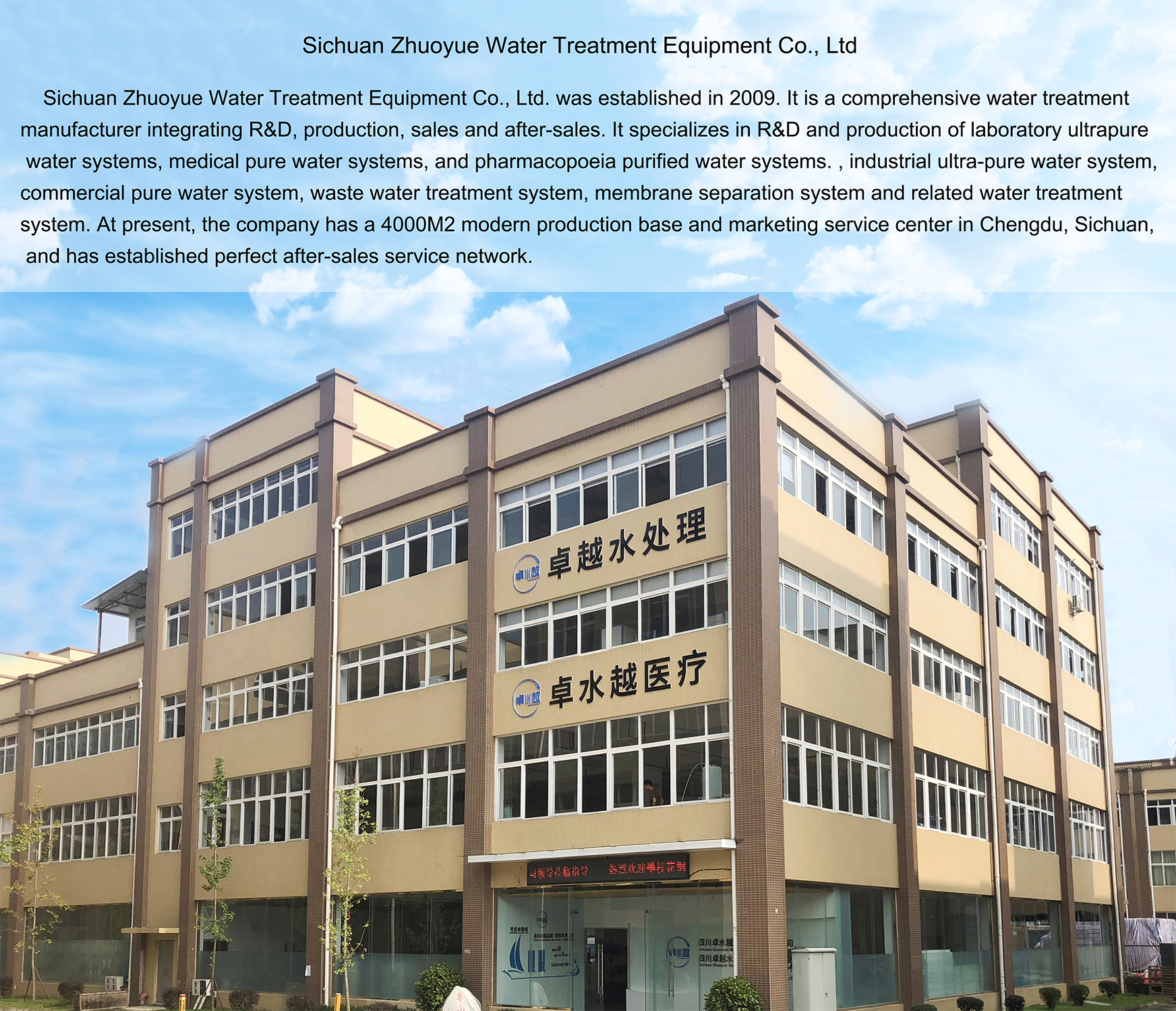

Compang information

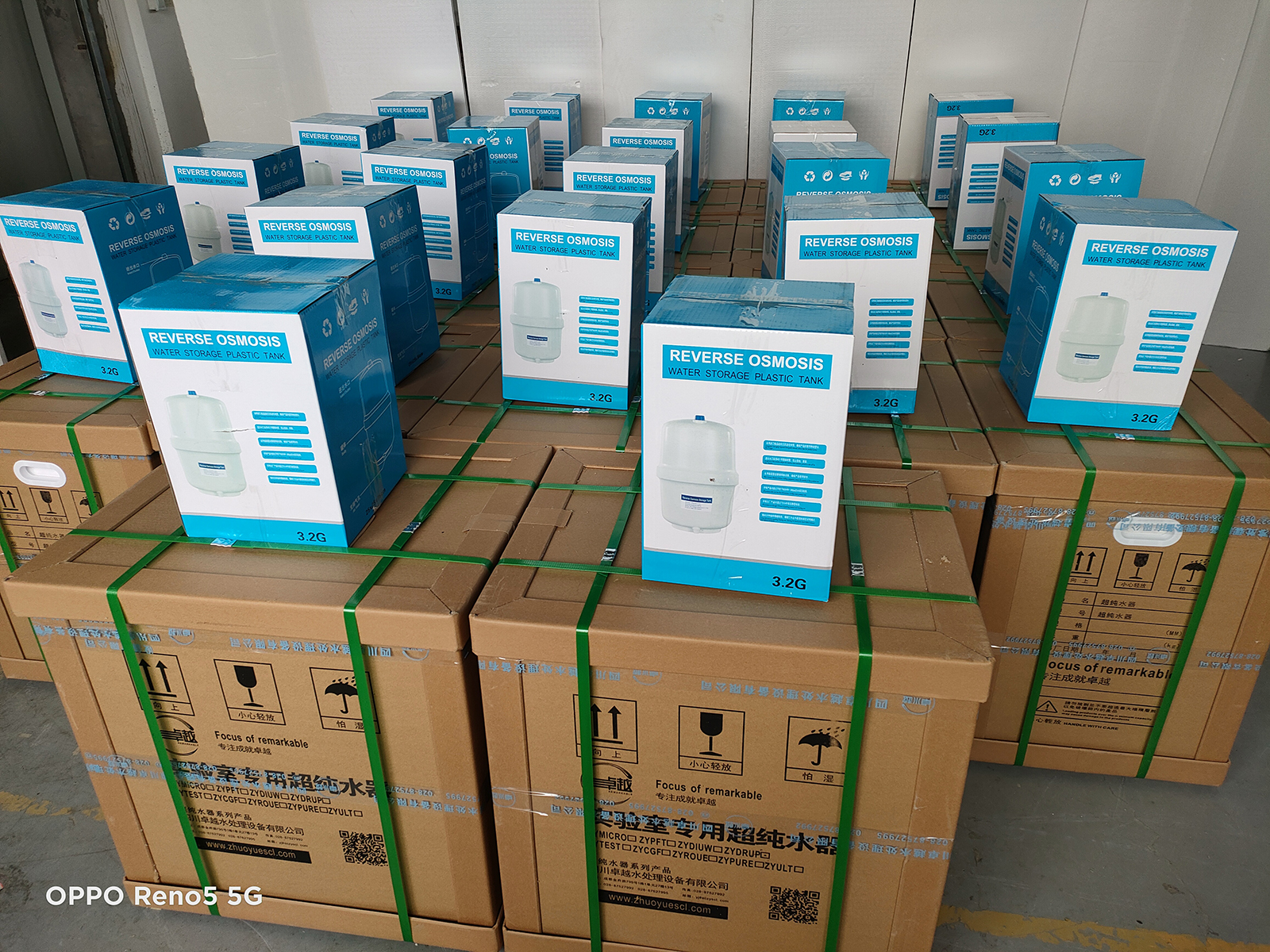

Product packaging

Why Choose Us

Why choose us :

1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .
2. Strict time control : Ensure delivery time.
3. Factory strength: The factory area is more than 2000m3, more than 100 workers.
4. After-sales service : 24 Hours online for service.
5. Customized is available. Sample order is available.
