ZYRO

series double stage reverse osmosis water plant is a membrane seperation technology which uses pressure difference as power
to purify water. It can seperate organics, inorganics, microorganism, bacteria, particles and H2O to get pure or ultrapure water.
So it's usually used for commercial, chemical, medical industry.

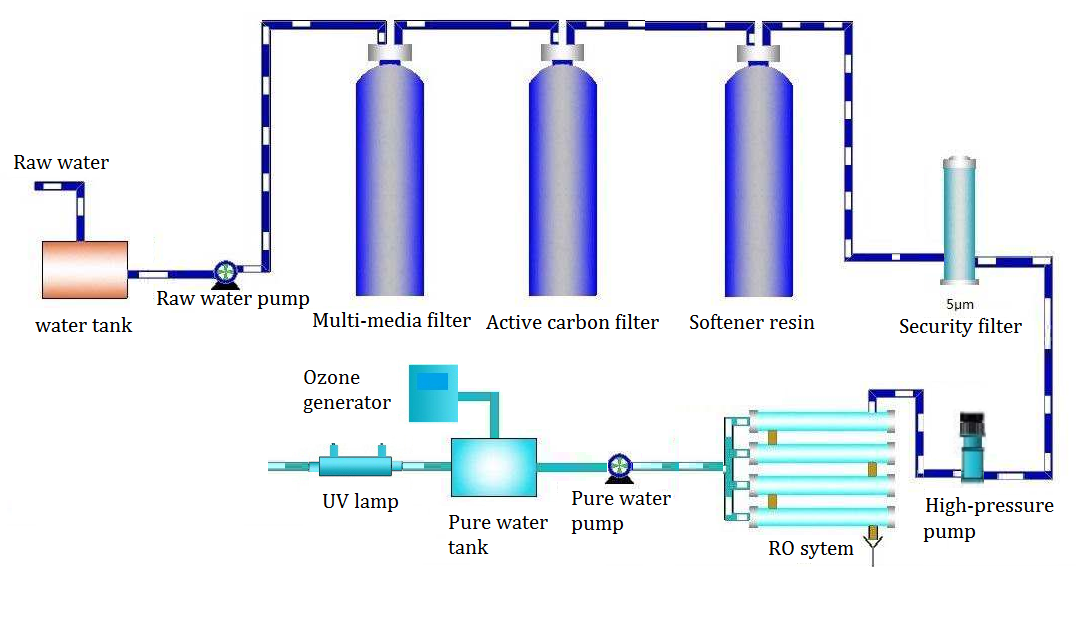

Product Diagram

1. Raw water pump-- provide pressure to quartz sand filter/active carbon filter.
2. Quartz sand filter-- filtrate sediment, rust, silt, turbidity, suspended matter, organic matter, colloid, ect.
3. Active carbon filter--Remove color, residual chlorine, organic matter, harmful matter, ect.
4. Softener filter--exchange Ca2+ and Mg2+ to Na+ to prevent scalling and save RO memrbane.
4.1. Brine tank-- regenerate softener resin.
5. Security filter--prevent large particles, bacteria, virus into RO membrane, accuracy is olny 5um.
6. High pressure pump-- Provide the high pressure to RO membrane.
7. RO membrane-- remove more than 99% ions, bacteria, salt, pollutant matters, microorganism, heavy metal ions, colloid,emdotoxin
and other particles in the water.

Model list

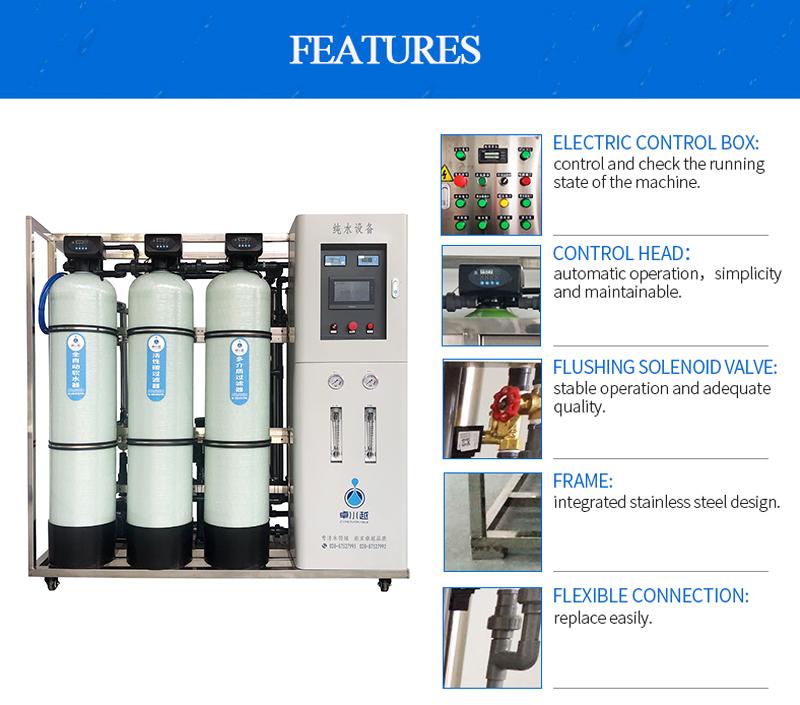

Features

· High-precision filtration, nanometer pore size, the best pure water quality
· Manual/automatic dual control system can switch automatically
· It has safety devices such as power-on self-test, automatic shutdown protection when water is short of power and power failure,
automatic shutdown of water when water comes in, shutdown when water is full, and no pressure protection.
· It has the functions of automatic flushing of RO membrane and automatic double flushing when the water tank is full, which can
prolong the life of RO membrane
· With water quality online monitoring (conductivity display) flow and pressure online display
· Large water yield, high desalination rate, long service life
