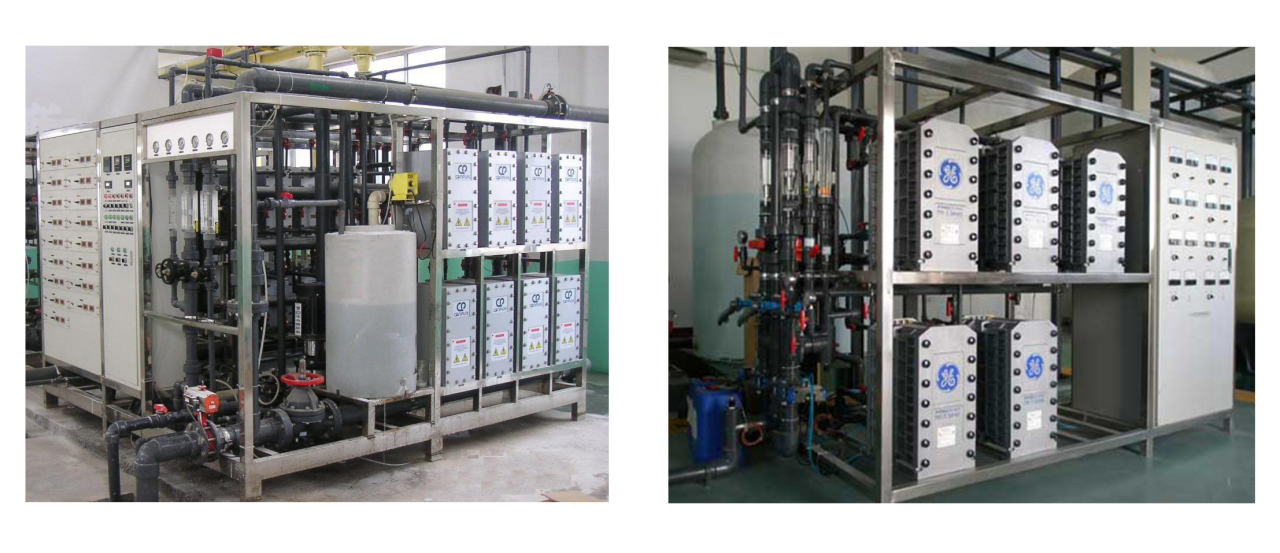

EDI Ultra Pure Water System


Technical Parameters：

Feed water	Ro Water, Conductivity≤20us/cm
PH value	6.0-9.0(better be 7.0-9.0
Temperature	5-35 ℃
Hardness(CaCO3)	＜0.5ppm
Organic	＜0.5ppm. TOC
Oxide	≤0.05ppm(Cl2),0.02ppm(O3)
Fe、Mn	＜0.01ppm
SiO2	＜0.5ppm
CO2	＜5ppm

Model	Water Yield L/H	Conductivity meter	Conductivity	Current	Material	外形尺寸
						WidthLengthHeight
PND-500L	500	Show feed water quality	15-18	2.5-4A	SS	800mm800mm1650mm
PND -1000L	1000					800mm800mm1650mm
PND -2000L	2000					800mm800mm1650mm
PND-3000L	3000					800mm800mm1650mm
PND-4000L	4000					800mm1000mm1650mm
PND-5000L	5000					800mm1000mm1650mm
