FRP Vessel
Feature:
1.Long-term wholesale, Pentair Fibre reinforced plastic vessel, widely used in water treatment.
2.All PRP tanks are in lined with anti-corrosion material. Diameters range from 180-8000mm.
3. Diameter 180-1800mm,Height 2400mm.

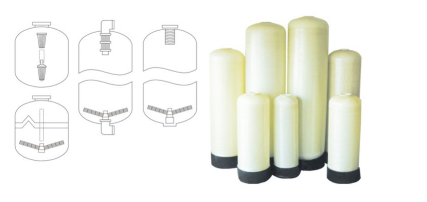

4. Opening position: top and bottom water inlet and outlet hole, side open filter inlet and outlet hole.
5.Hole Opening form: threaded or flange connection. It can be equipped with imported water treatment
equipment such as Fleck,Autotrol, Kinetico.
6.Water Distributor: a claw type water distributor will be adopted which can be matched with imported
controller in the range of automatic softening and filtration.
Parameter:
| No. | Size(Inches) | Normal Size(mm) | Opening | Volume | Dimension(mm) | |||||
| Top（Inches） | Bottom | Liter | Gallon | A | B | C | D | |||
| 1 | 6x13 | 150*330 | 2.5 | / | 4.6 | 1.2 | 337 | φ165 | φ155 | |
| 2 | 6x17 | 150*450 | 2.5 | / | 6.6 | 1.7 | 435 | φ165 | φ155 | |
| 3 | 6x35 | 150*890 | 2.5 | / | 13.7 | 3.6 | 918 | φ165 | φ155 | |
| 4 | 7x13 | 180*330 | 2.5 | / | 6.3 | 1.7 | 335 | φ197 | φ182 | |
| 5 | 7x17 | 180*450 | 2.5 | / | 8.6 | 2.3 | 438 | φ197 | φ182 | |
| 6 | 7x35 | 180*890 | 2.5 | / | 20.1 | 5.3 | 895 | φ197 | φ182 | |
| 7 | 7x44 | 180*1100 | 2.5 | / | 25.6 | 6.8 | 1125 | φ197 | φ182 | |
| 8 | 8x13 | 200*330 | 2.5 | / | 8.5 | 2.2 | 335 | φ216 | φ210 | |
| 9 | 8x17 | 200*450 | 2.5 | / | 10.9 | 2.9 | 435 | φ216 | φ210 | |
| 10 | 8x44 | 200*890 | 2.5 | / | 25 | 6.6 | 890 | φ216 | φ210 | |
| ...... | ||||||||||
| 68 | 72x79 | 1800*2600 | 6-FLG(Man hole 400mm) | 6-FLG | 4577 | 1210.8 | 2560 | 275 | φ1800 | |
| 69 | 80x79 | 2000*2600 | 6-FLG(Man hole 400mm) | 6-FLG | 5074 | 1342.3 | 2480 | 265 | φ2000 | |
| Contact Supplier for all parameters | ||||||||||
