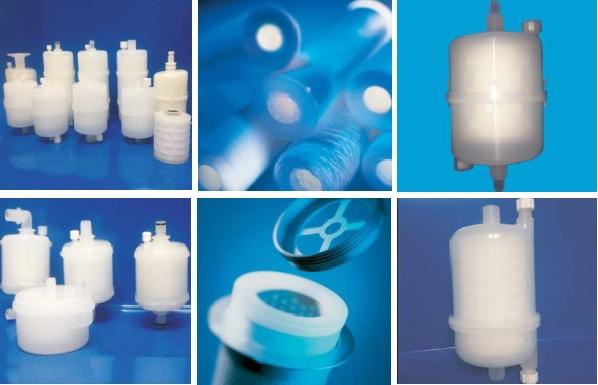

Terminal filters are a family of disposables specifically designed for small-scale filtration, clarification in the microelectronics, food and beverage, chemical and ink printing.

Material:

* Media: Polypropylene, Nylon, PTFE, Glass fiber and Polyetthersulfone.

* Media support: Polypropylene, Polyester.

* Cage, core and encaps: Polypropylene, Nylon.

* Sealing: Thermally welded.

Operation condictions:

* Maximum operating pressure: Liquid 6 bar @25℃; Gas: 4.1 bar @25℃.

* Minimum burst pressure: 8.5 bar @25℃.

Fitting:

1/4'' NPT-M,vent/drain 1/8''NPT.

Odering information:

For example:

SPKSPP0104N4N is a 2.5'' capsule filter rated at 1.0um with 1/4'' NPT in/out fittings, made of polypropylene shell and media.

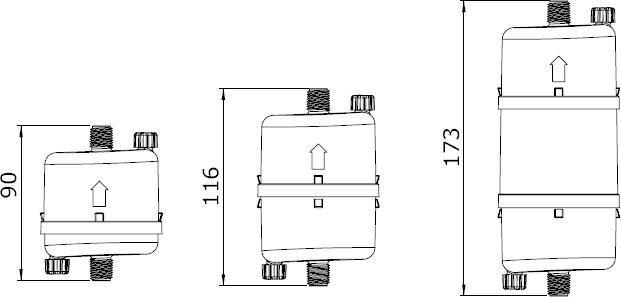

Specification:
