Automatic Softening Water System

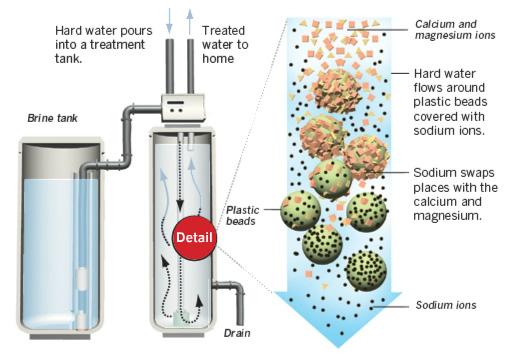

ZYRH Softening Water System is an automatic control operation and regeration system. The food grade resin can remove Ca2+ and Mg2+ to reduce water's hardness, so as to prevent scalling in the pipe, vessel, tank, boiler, etc.

Automatic Softening Water System for Air-condition

Parameter:

Raw water hardness: ≤ 8mmol/L	Power consumption:10-40W
Power supply: 220V+-22V; 50Hz/60Hz	Water inlet temperature: 2-38℃
Water consumption: <2% of water production	Operating temperature: 5-50℃
Water pressure: 0.2-0.4Mpa	Total pressure loss of equipment: 0.03Mpa
Regeneration: dynamic downstream (countercurrent) timing regeneration
Residual hardness of water: ≤ 0.03 mmol/L
Consumption of salt: 100-250g / mol (depending on raw water quality.)
Softening Resin Model: British drift Wright food grade cation exchange resin

Details:

Automatic Softening Water System for Air-condition

Model List:

Model	Water Yield (L/H)	Tank's size *(ΦH mm)**	Resin (kg)	Brine box's size *(ΦH mm)**	Brine box's volume (L)	The DN of water pipe	Working pressure (MPa)
ZYRH-817T	200-500	tank built-in	10	440220640	box built-in	3/8''	0.2-0.4
ZYRH-835L	200-500	tank built-in	16	4402201100	box built-in	3/8''	0.2-0.4
ZYRH-844L	200-500	200*1200	20	340340810	60	3/8''/DN15	0.2-0.4
ZYRH-1054L	500-1000	250*1400	38	400400960	100	DN20	0.2-0.4
ZYRH-1252L	1000-2000	300*1350	54	400400960	100	DN20	0.2-0.4
ZYRH-1465L	2000-3000	350*1650	90	400400960	100	DN25	0.2-0.4
ZYRH-1665L	3000-4000	400*1650	112	400400960	100	DN25	0.2-0.4
ZYRH-2069L	4000-6000	500*1750	200	520*1070	200	DN25	0.2-0.4
ZYRH-2472L	6000-8000	600*1850	280	610*1100	300	DN50	0.2-0.4
ZYRH-3672L	100000	900*1800	560	900*1230	750	DN50	0.2-0.4

Application:

Automatic Softening Water System for Air-condition

1. Industrial: steam boiler water, hot water hoiler, cooling water, cleaning equipment, water and food, beverages, wine, printing and dyeing, chemical, pharmaceutical, electronics and other industries softening treatment.

2. Household: air conditioning system water, hotels hotel bath water, laundry water, swimming pool water;

3. As a pre-treatment for desalination systems. The hardness of the produced water after single-stage or multi-stage water softener treatment can be greatly reduced.
