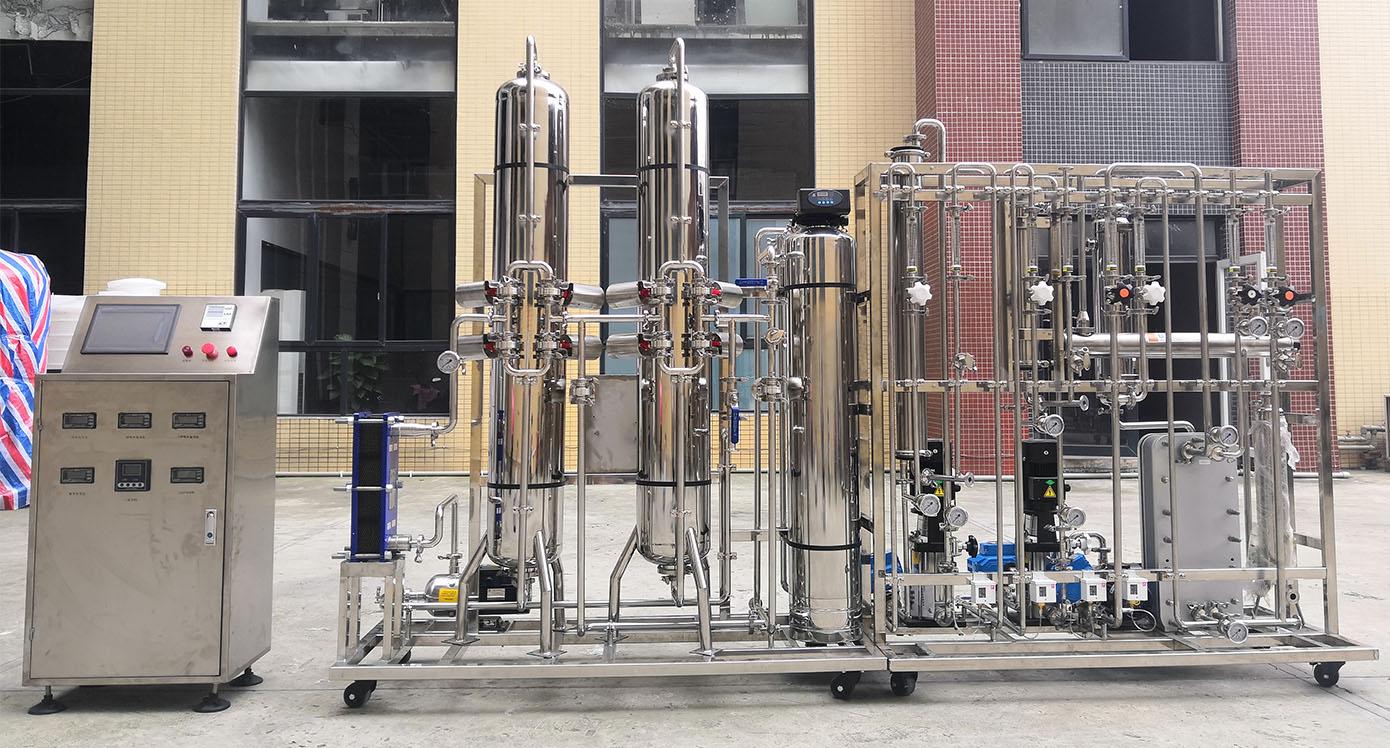

ZYGMPRO--The core technology of purified Pharmaceutical water equipment adopts single-stage or double-stage reverse osmosis, EDI and other latest processes to design targeted high-quality pure water treatment processes in a targeted manner to meet the purified or distilled water of pharmaceuticals, hospitals, and laboratory diagnostic reagents.
The entire system is made of SUS304L or SUS316L all stainless steel material combination, and before the water point must be equipped with ultraviolet,ozone disinfection device or can also be pasteurized.
1. Feed water: Meet the sanitary standards for drinking water (pressure 0.2-0.5MPa); conductivity ≤ 500μs/cm; total hardness <300PPM
2. Power supply : AC380/220V 50HZ, three-phase five-wire, reliable grounding
3.Temperature: 5-40 °C; Atmospheric pressure: 700Kpa-1060Kpa; Relative humidity: ≤ 80%
4. Desalination rate ≥99%
5.The maximum operating pressure: ≤ 1.5Mpa
6.Installation site requirements: Smooth ground with a waterproof layer, a smooth floor drainage
7. Avoid direct sunlight, strong magnetic field interference environment
| Model | ZYGMPRO- 250-2000L/H | ||||
| Feed Water | TDS<500ppm, water pressure:0.1-0.5MPa; Working Temperature: 25℃ | ||||
| Power Supply | 380/220V; 50/60Hz | ||||
| Capacity(L/H) | 250L/H | 500L/H | 1000L/H | 1500L/H | 2000L/H |
| Power(KW) | 2.5 | 3.5 | 3.5 | 4.0 | 5.0 |
| Water Quality(us/cm) | Conductivity: 5<μs/cm; TOC: ≤0.5mg/L; Microorganism<100cfu/ml | ||||
| Body Size(mm) | 2000*800*1600mm | 2500*800*1700mm | |||
| Floor Space (M2) | 10-12M2 | 12-15M2 | |||
| Weight (kg) | <300 | <600 | <1000 | ||
| Sterile Tank | 250L | 500L | 1000L | 1500L | 2000L |
| Water Inlet Pipe Size | DN25 | DN20-25 | DN25-32 | DN25-32 | DN32-40 |
Basic configuration:
(1) Pretreatment + Primary Reverse Osmosis + Secondary Reverse Osmosis + Sterilizer + Circulatory System
(2) Pretreatment + Primary Reverse Osmosis + EDI Equipment + Sterilization Device + Circulatory System
(3) Pretreatment + Primary Reverse Osmosis + Secondary Reverse Osmosis + EDI Equipment + Sterilization Device + Circulatory System
Customization is available

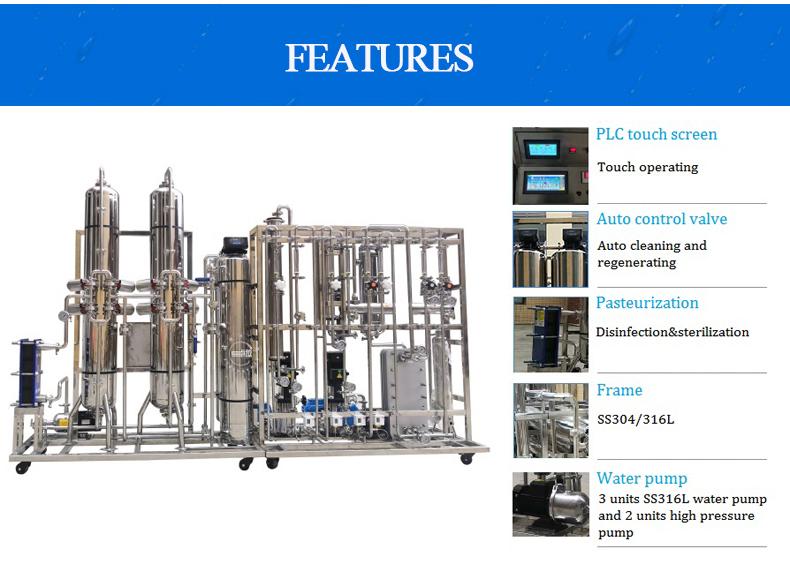

1. Automatic PLC control: Simens.
2. Touch ScreenL: Kunlun.
3. Raw water pump: provide pressure to quartz sand filter and AC filter.
4.Quartz sand filter(equips Auto. flushing system): get rid of silt, rust. turbidity, suspended matter, organic matter, agla, colloid, etc.
5. AC filter(equips Auto. flushing system): adsorb residual chlorine, color, off-flavor and parts of organics.
6. Softener filter(equips Auto. flushing system and regeneration system): remove Ca2+ and Mg2+ in the water, changing hard water to softener water and protecting RO membrane.
6-1. Antiscalant: efficiently prevent the formation of scale, microbial glue and increase the machine's desalinization rate and water production.
7. Security filter(SUS; 5um): filtrate impuritiea and extend the working life of RO membrane.
8. Main engine: 2 stage RO membrane, high pressure pump, resistivity and conductivity meter, high&low pressure production, concentrate water flow, pure water flow, inlet solenoid valve, flushing solenoid valve, SUS304/316Lmainframe, etc.
