Water Treatment
Automatic Control RO System

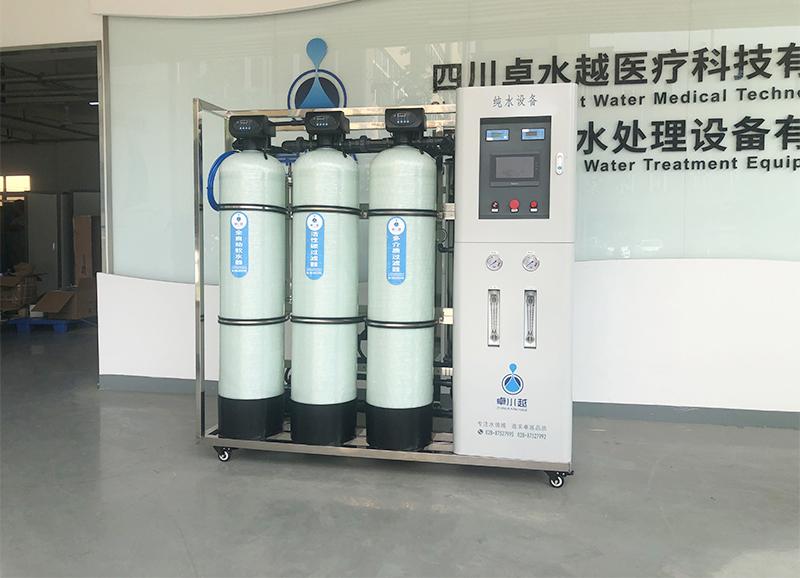

ZYRO series double stage reverse osmosis water plant is a membrane seperation technology which uses pressure difference as power to purify water. It can seperate organics, inorganics, microorganism, bacteria, particles and H2O to get pure or ultrapure water. So it's usually used for commercial, chemical.

*. Capacity: 1000 liter per hour;

*. Inlet water pressure: 0.2-0.4MPa;

*. Inlet water temperature: 4-45℃ (best temp.: 25℃);

*. TDS of feed water: <500ppm;

*. Diameter of RO membrane: 0.0001-0.001um;

*. Desalinization rate: ≥99%;

*. Bacteria removal rate: ≥99%;

*. Recovery rate: ≥75%;

*. Conductivity of production pure water: ≤15us/cm@25℃;

*. Configuration: automatic control electric box+quarz sand filter+active carbon filter+softener resin+security filter+high pressure pump+RO membrane.

*. Optional consumable: PLC touch screen, constant water supply system, double stage RO system, EDI ultrapure water system, UF ultrafiltration mineral water system, UV lamp, ozone generator, etc..

Mode list

ModelCapacityPower supplySpecificationWater quality
ZYRO-3000L3000L/H 380V/1.2Kw1800*1000*1800mm
ZYRO-4000L4000L/H 380V/1.2Kw1800*1000*1800mm
ZYRO-5000L5000L/H 380V/1.2Kw1800*1000*2000mm

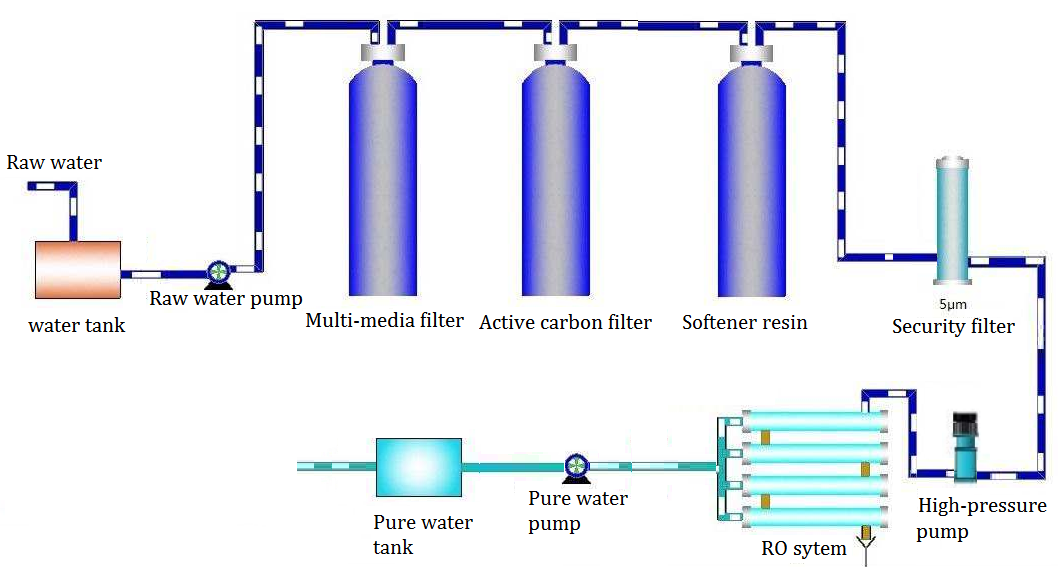

1000 lph Large Scale Industrial Double Pass RO Aquas Reverse Osmosis Water Purification System

1. Raw water pump-- provide pressure to quartz sand filter/active carbon filter.

2. Quartz sand filter-- filtrate sediment, rust, silt, turbidity, suspended matter, organic matter, colloid, ect.

3. Active carbon filter--Remove color, residual chlorine, organic matter, harmful matter, ect.

4. Softener filter--exchange Ca2+ and Mg2+ to Na+ to prevent scalling and save RO memrbane.

4.1. Brine tank-- regenerate softener resin.

5. Security filter--prevent large particles, bacteria, virus into RO membrane, accuracy is olny 5um.

6. High pressure pump-- Provide the high pressure to RO membrane.

7. RO membrane-- remove more than 99% ions, bacteria, salt, pollutant matters, microorganism, heavy metal ions, colloid,emdotoxin and other particles in the water.
